Overview #
The following documentation shows how to aggregate and display Advanced Custom Fields locations on a WP Go Maps map.
Integrated markers are fully compatible with our Store Locator and Marker Listing features.
Setup #
Prerequisites #
The Following Plugins need to be installed and active
- WP Go Maps
- WP Go Maps Pro Addon
- Advanced Custom Fields
Create ACF Field #

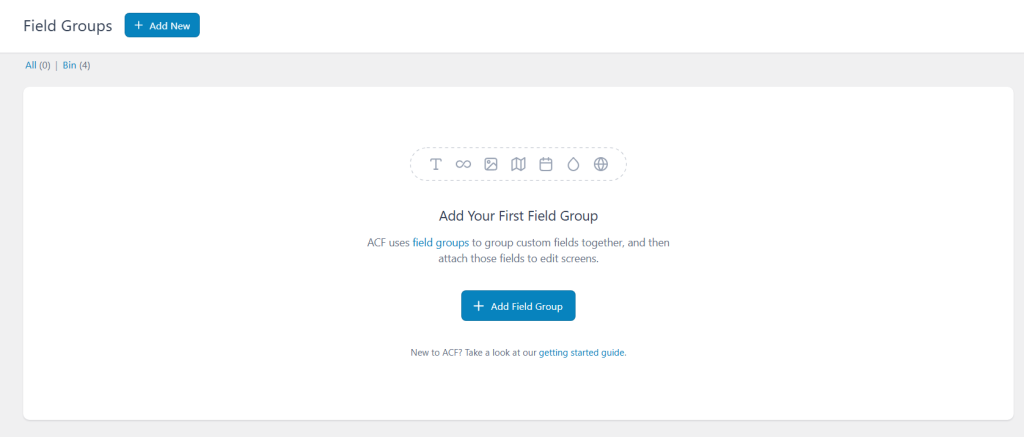

Please firstly navigate to ACF’s Custom Fields page and click Add New.
Creating a new Field Group
In this example, we create a field group for Pages

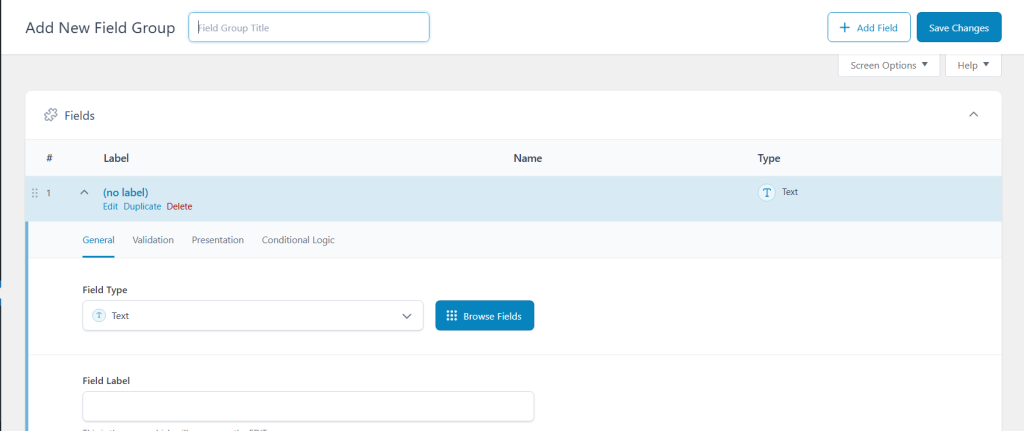

Add a title for the new Field Group, we’ll call this one “Integrated Location Field Group“
Select the “+ Add Field” Button
Add Field

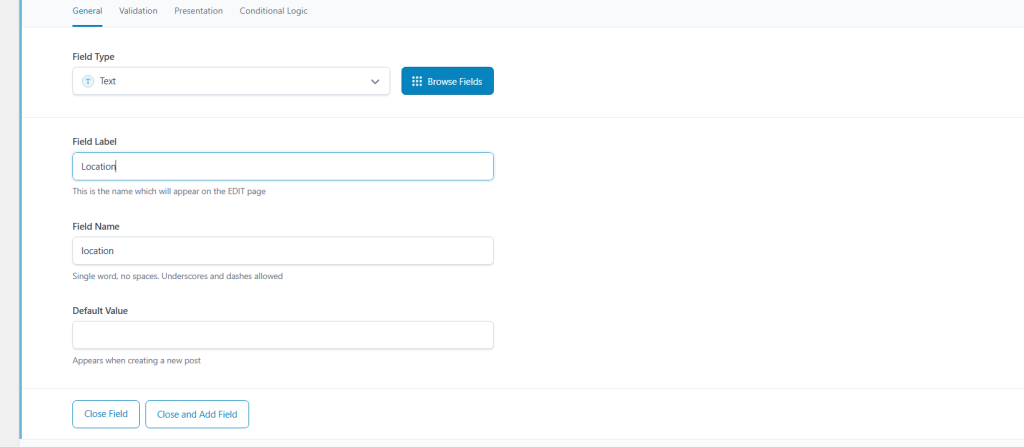

Enter Field Label as Location (field Name will automatically populate to the same)
Select Field Type as Google Map
Select Google Map Field Type

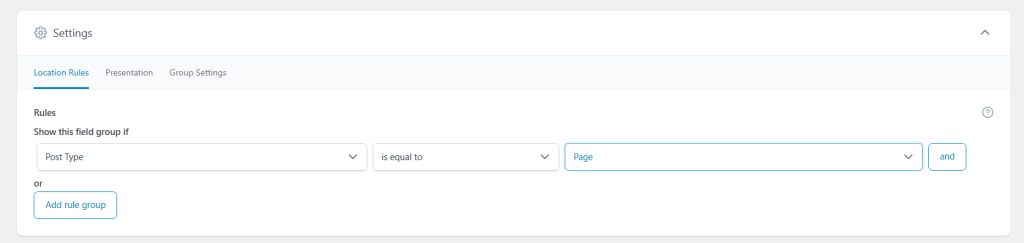

Set Location the custom field will be displayed, in this case we’ll use Post Type is equal to Page
Location is Page post Type
Remember to save your new Custom Field, by selecting the Save Changes
Save Changes
Create a page for your custom field location #
Navigate to the Pages menu on your WordPress dashboard and click Add New.
From the page editor, you can specify your Custom Field location.
Add a Custom Location Value to a Page
Once you have added your location, please remember to save the page (Selecting the Publish Button)
Create a new map #
In WP Go Maps, create a new Map
This is the Map where all configured Custom field locations will be displayed
- Navigate to WP Go Maps -> Maps -> and select Add New
- Navigate WP Go Maps -> Maps (in edit mode of you new map) -> Settings -> General , enter Map Name in this case we’ll call it “ACF Display map”
- Save Map
Enabling the ACF Feature for the display map #

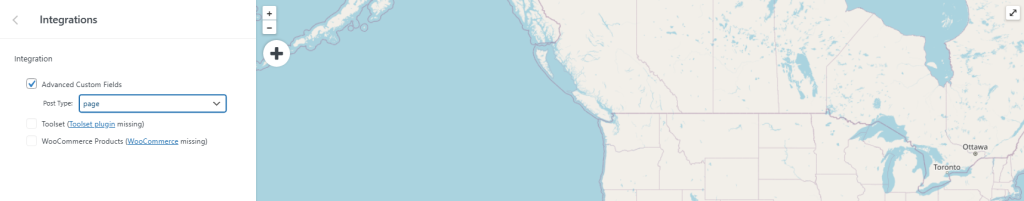

Enable Advanced Custom Fields at the following location.
WP Go MAPS -> Maps (edit the ACF Display Map) -> Settings -> Integrations
Select The Page Post Type
Enabling ACF feature for your map
Then click Save Map to save your settings.
Add a new WordPress Page with your Display Map #

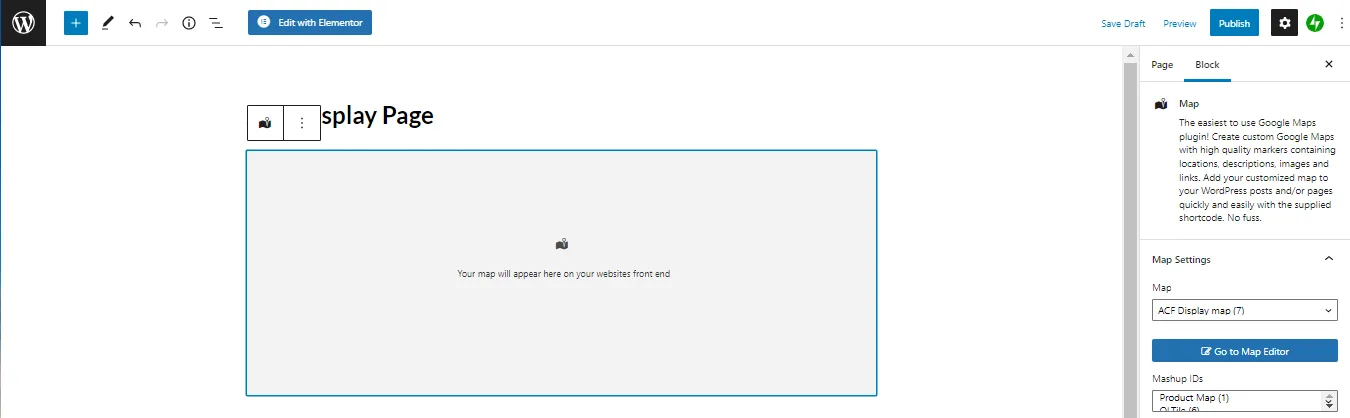

Add the “ACF Display map” to a new page in WordPress
Add Display map to display page
Example #
Your Advanced Custom Fields locations will now be visible on the front end on your WP Go Maps map.
The integrated marker has a link back to the page this ACF location was created on, and will pull it’s title, from the page title, the page featured image as the marker image and the page content as the marker description.
Example ACF Marker Infowindow
Importing Integrated Markers #
The above tutorial shows how to display your markers dynamically, pulling the data in real time from an integration source.

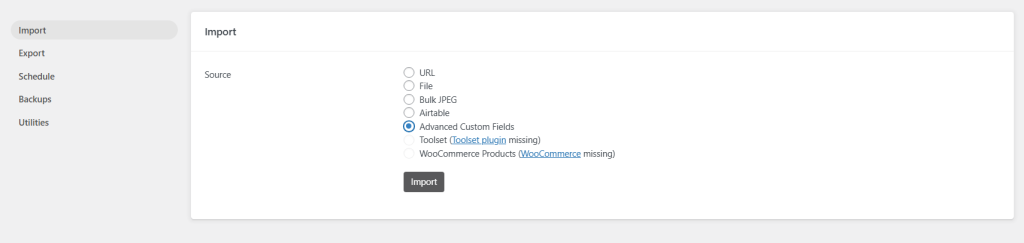

If you want to import your data to work on it within our plugin, as opposed to dynamically integrating the markers, please navigate to:
WP Go MAPS -> Tools -> Import -> Advanced Custom Fields
ACF Import
Please note at present there is no way to export your markers back to the source from which they originated.
